Lecture 9

DataBricks and Spark NLP

Amit Arora, Jeff Jacobs

Georgetown University

Fall 2025

Looking Back

• Intro to Hadoop and MapReduce
• Hadoop Streaming
• Dask
• Spark RDDs, DataFrames, SparkSQL, SparkML

Future

• Spark Streaming
• Docker containers / serverless functions
• Data engineering

Today

• Project Introduction

• Spark NLP

• Lab:

  • SparkNLP

Review of Prior Topics

AWS Academy

• Credit limit - $100

• Course numbers:

  • Course #1 - 24178
  • Course #2 - 27354
  • Course #3 - 22802
  • Course #4 - 26418

STAY WITH COURSE 24178 UNLESS YOU HAVE RUN OUT OF CREDITS OR >$90 USED!

Note that you will have to repeat several setup steps:

• security group
• EC2 keypair uploading (the AWS part only)
• any S3 uploading or copying as well as bucket creation as necessary
• EMR configuration

Review of File Systems

What are the possible file system options for each item: S3, HDFS, Local file system

hadoop jar /usr/lib/hadoop/hadoop-streaming.jar #1

-files basic-mapper.py,basic-reducer.py #2

-input /user/hadoop/in_data #3
-output /user/hadoop/in_data #3

-mapper basic-mapper.py #4
-reducer basic-reducer.py #4

1. Local file system

2. Local file system/S3/ OR HDFS – UPDATE

3. HDFS or S3

4. UPDATE – It’s complicated - “The -files option creates a symlink in the current working directory of the tasks that points to the local copy of the file.” Location of #4 can be:

• Symlinked file (one you passed with -files) in the pwd in distributed containers
• Executable path (local to a worker) that is consistent across all workers on the cluster

Connected and extensible

Caching and Persistence

By default, RDDs are recomputed every time you run an action on them. This can be expensive (in time) if you need to use a dataset more than once.

Spark allows you to control what is cached in memory.

To tell spark to cache an object in memory, use persist() or cache():

• cache(): is a shortcut for using default storage level, which is memory only
• persist(): can be customized to other ways to persist data (including both memory and/or disk)

# caches error RDD in memory, but only after an action is run
errors = logs.filter(lambda x: "error" in x and "2019-12" in x).cache()

collect CAUTION

Spark UI - Executors

UDF Speed Comparison

Costs:

• Serialization/deserialization (think pickle files)
• Data movement between JVM and Python
• Less Spark optimization possible

Other ways to make your Spark jobs faster source:

• Cache/persist your data into memory
• Using Spark DataFrames over Spark RDDs
• Using Spark SQL functions before jumping into UDFs
• Save to serialized data formats like Parquet

Transformers

Transformers take DataFrames as input, and return a new DataFrame as output. Transformers do not learn any parameters from the data, they simply apply rule-based transformations to either prepare data for model training or generate predictions using a trained model.

Transformers are run using the .transform() method

Estimators

Estimators learn (or “fit”) parameters from your DataFrame via the .fit() method, and return a model which is a Transformer

Pipelines

Pipelines

Pipelines combine multiple steps into a single workflow that can be easily run. * Data cleaning and feature processing via transformers, using stages * Model definition * Run the pipeline to do all transformations and fit the model

The Pipeline constructor takes an array of pipeline stages

Why Pipelines?

1. Cleaner Code: Accounting for data at each step of preprocessing can get messy. With a Pipeline, you won’t need to manually keep track of your training and validation data at each step.

2. Fewer Bugs: There are fewer opportunities to misapply a step or forget a preprocessing step.

3. Easier to Productionize: It can be surprisingly hard to transition a model from a prototype to something deployable at scale, but Pipelines can help.

4. More Options for Model Validation: We can easily apply cross-validation and other techniques to our Pipelines.

Project Introduction

Reddit Data!

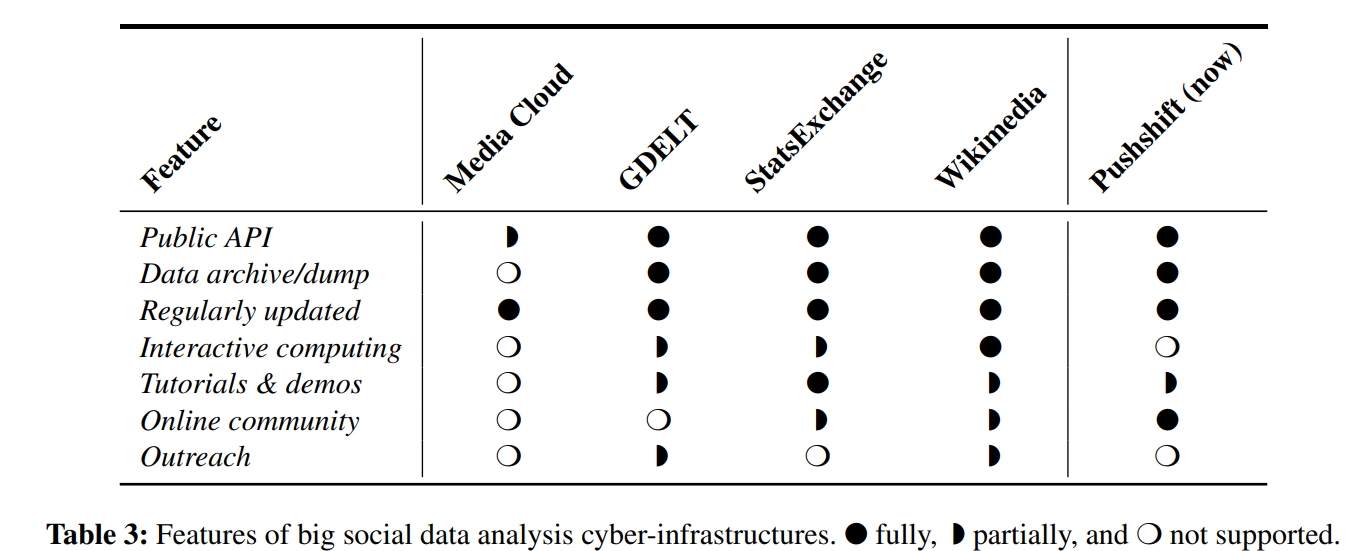

Comparison of social data infrastructure

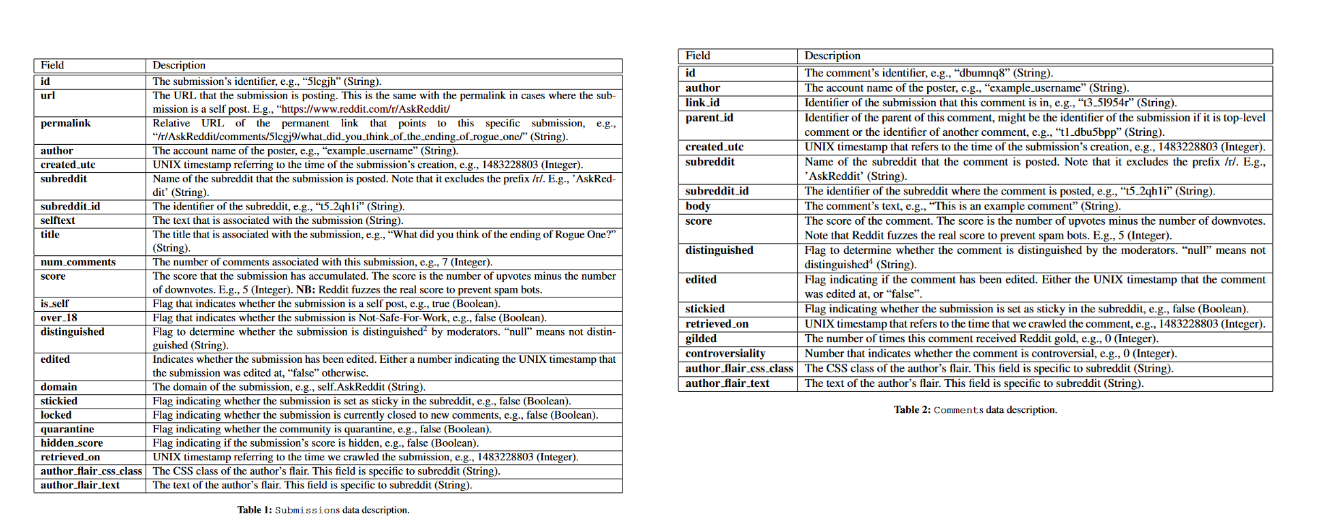

Data Dictionary

Next Steps

• Start working with your group to conduct EDA on the dataset
• Initial data questions - understand the structure of the data!
• Define your business questions - how do you plan to work with this data
• Look into external data to merge with your Reddit data

Basic requirements will be published on Thursday

Deadline for Project Milestone 1: EDA Monday November 7

Start your AWS Spark Cluster

Text Analytics with Spark

Spark methods for text analytics

• String manipulation SQL functions: F.length(col), F.substring(str, pos, len), F.trim(col), F.upper(col), …

• ML transformers: Tokenizer(), StopWordsRemover(), Word2Vec(), CountVectorizer()

Tokenizer

>>> df = spark.createDataFrame([("a b c",)], ["text"])

>>> tokenizer = Tokenizer(outputCol="words")

>>> tokenizer.setInputCol("text")

>>> tokenizer.transform(df).head()

Row(text='a b c', words=['a', 'b', 'c'])

>>> # Change a parameter.
>>> tokenizer.setParams(outputCol="tokens").transform(df).head()
Row(text='a b c', tokens=['a', 'b', 'c'])

>>> # Temporarily modify a parameter.
>>> tokenizer.transform(df, {tokenizer.outputCol: "words"}).head()
Row(text='a b c', words=['a', 'b', 'c'])

>>> tokenizer.transform(df).head()
Row(text='a b c', tokens=['a', 'b', 'c'])

doc

StopWordsRemover

>>> df = spark.createDataFrame([(["a", "b", "c"],)], ["text"])
>>> remover = StopWordsRemover(stopWords=["b"])
>>> remover.setInputCol("text")
>>> remover.setOutputCol("words")
>>> remover.transform(df).head().words == ['a', 'c']
True
>>> stopWordsRemoverPath = temp_path + "/stopwords-remover"
>>> remover.save(stopWordsRemoverPath)
>>> loadedRemover = StopWordsRemover.load(stopWordsRemoverPath)
>>> loadedRemover.getStopWords() == remover.getStopWords()
True
>>> loadedRemover.getCaseSensitive() == remover.getCaseSensitive()
True
>>> loadedRemover.transform(df).take(1) == remover.transform(df).take(1)
True
>>> df2 = spark.createDataFrame([(["a", "b", "c"], ["a", "b"])], ["text1", "text2"])
>>> remover2 = StopWordsRemover(stopWords=["b"])
>>> remover2.setInputCols(["text1", "text2"]).setOutputCols(["words1", "words2"])
>>> remover2.transform(df2).show()
+---------+------+------+------+
|    text1| text2|words1|words2|
+---------+------+------+------+
|[a, b, c]|[a, b]|[a, c]|   [a]|
+---------+------+------+------+

doc

Application of Sentiment Analysis in PySpark

Data: S&P company earnings calls - 10s of millions of text statements

Method: proximity-based sentiment analysis

Tech: PySpark, Python UDFs, lots of list comprehensions!

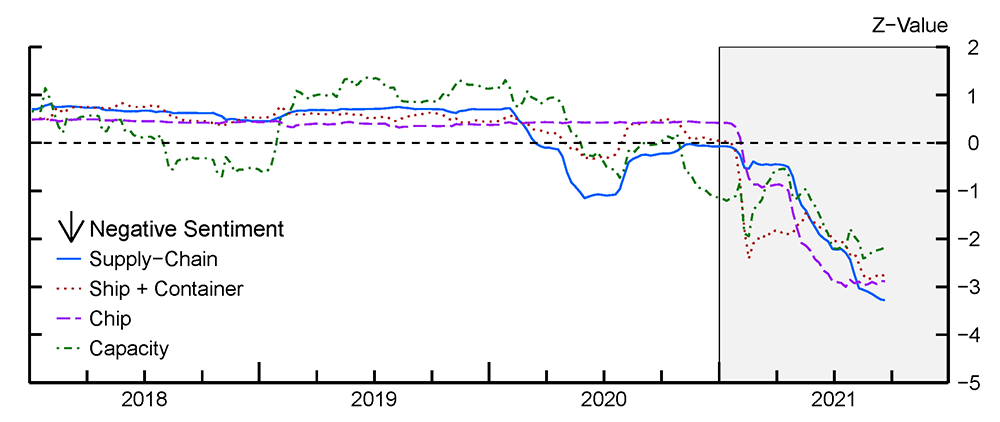

Outcome: Time series trends of company concerns about supply chain related issues

Application continued

Example: find the A’s within a certain distance of a Y

# within2 -> 0
X X X X Y X X X A
# within2 -> 1
X X A X Y X X X A
# within2 -> 2
X A X A Y A X X A
# within4 -> 3
A X A X Y X X X A

• Count the number of Y’s in the text that have an A near enough to them
• Aggregate at scale!
• Project uses Tokenizer() and StopWordsRemover()

Prof. Anderson’s Paper

COVID paper that championed the method

JonSnowLabs Spark NLP Package

Why use UDFs, run proximity-based sentiment? Let’s use more advanced natural language processing packages!

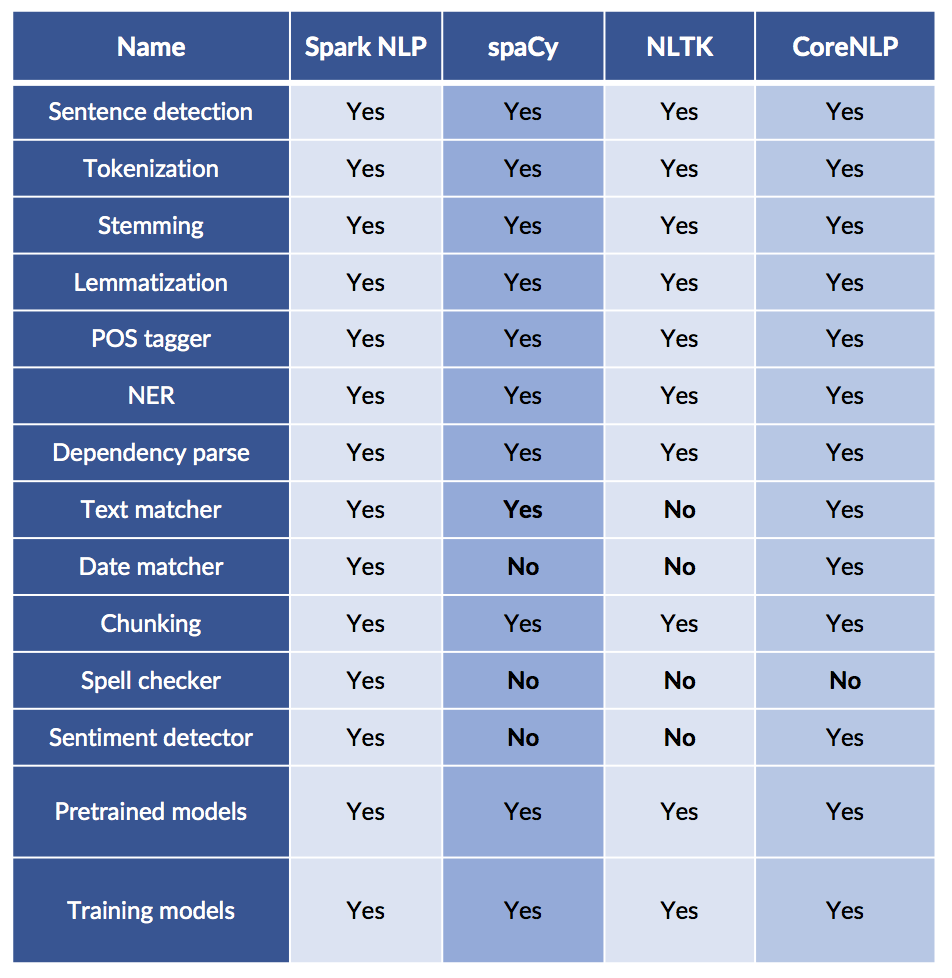

Which libraries have the most features?

Comparing NLP Packages

Just because it is scalable does not mean it lacks features!

Most Popular AI/ML Packages

Spark NLP is faster than SpaCy

Benchmark for training a pipeline with sentence bounder, tokenizer, and POS tagger on a 4-core laptop

Why??

• Whole stage code generation, vectorized in-memory columnar data
• No copying of text in memory
• Extensive profiling, config & code optimization of Spark and TensorFlow
• Optimized for training and inference

Aaaaannndddd…. it scales!

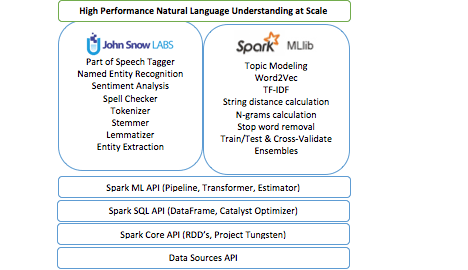

Spark NLP

Reusing the Spark ML Pipeline

• Unified NLP & ML pipelines

• End-to-end execution planning

• Serializable

• Distributable

Reusing NLP Functionality

• TF-IDF calculation

• String distance calculation

• Stop word removal

• Topic modeling

• Distributed ML algorithms

Spark NLP Terminology

Annotators

• Like the ML tools we used in Spark
• Always need input and output columns
• Two flavors:
  • Approach - like ML estimators that need a fit() method to make an Annotator Model or Transformer
  • Model - like ML transformers and uses transform() method only

Annotator Models

• Pretrained public versions of models available through .pretained() method

Q: Do transformer ML methods ever replace or remove columns in a Spark DataFrame?

No!! They only add columns.

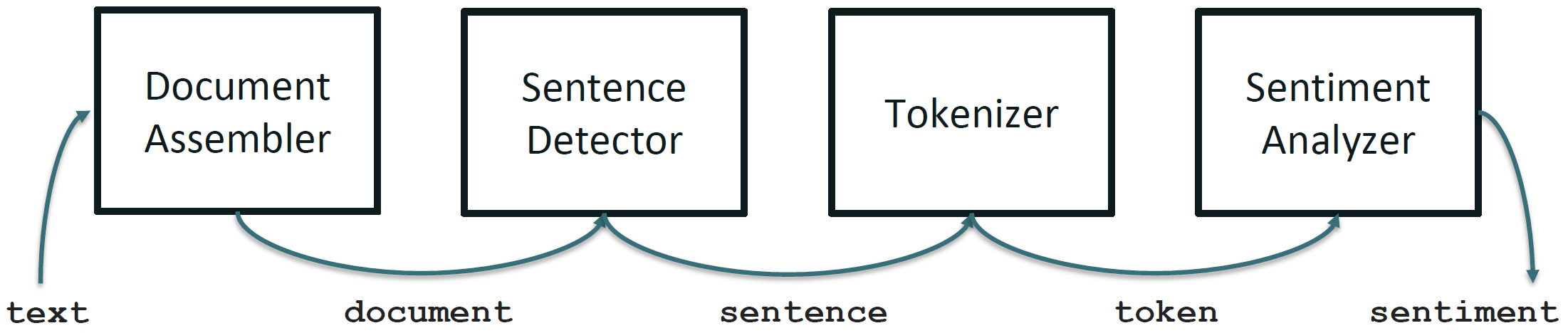

Spark NLP Sentiment Example

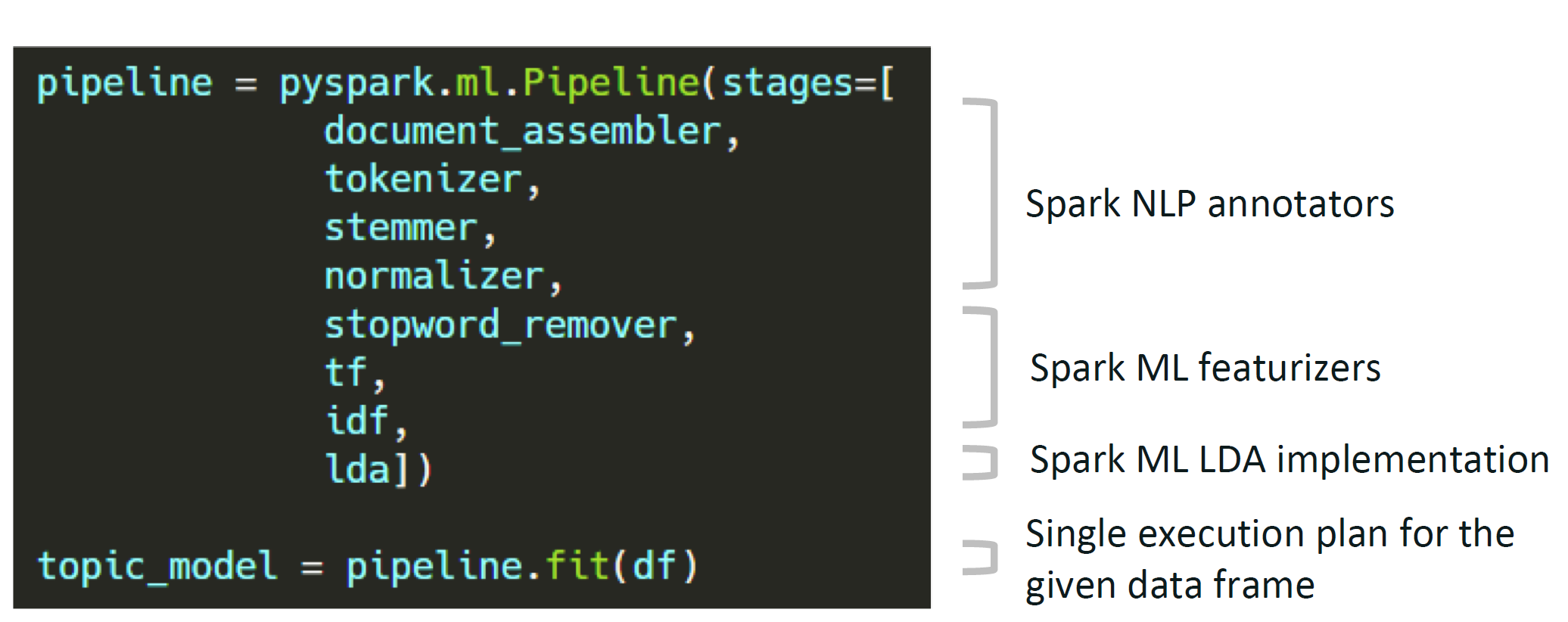

Spark NLP Pipeline Example

Spark NLP Pipeline Types

Spark Pipeline

• Efficiently run on a whole Spark Dataframe
• Distributable on a cluster
• Uses Spark tasks, optimizations & execution planning
• Used by PretrainedPipeline.transform()

Light Pipeline

• Efficiently run on a single sentence
• Faster than a Spark pipeline for up to 50,000 local documents
• Easiest way to publish a pipeline as an API
• Used by PretrainedPipeline.annotate()

Recursive Pipeline

• Give annotators access to other annotators in the same pipeline
• Required when training your own models

Essential Spark NLP reading

Overall Code Example

from pyspark.ml import Pipeline

document_assembler = DocumentAssembler()\
 .setInputCol(“text”)\
 .setOutputCol(“document”)

sentenceDetector = SentenceDetector()\
 .setInputCols([“document”])\
 .setOutputCol(“sentences”)

tokenizer = Tokenizer() \
 .setInputCols([“sentences”]) \
 .setOutputCol(“token”)

normalizer = Normalizer()\
 .setInputCols([“token”])\
 .setOutputCol(“normal”)

word_embeddings=WordEmbeddingsModel.pretrained()\
 .setInputCols([“document”,”normal”])\
 .setOutputCol(“embeddings”)

nlpPipeline = Pipeline(stages=[
 document_assembler,
 sentenceDetector,
 tokenizer,
 normalizer,
 word_embeddings,
 ])

pipelineModel = nlpPipeline.fit(df)

Code Example for DocumentAssembler

import sparknlp; from sparknlp.base import *
from sparknlp.annotator import *; from pyspark.ml import Pipeline

data = spark.createDataFrame([["Spark NLP is an open-source text processing library."]]).toDF("text")
documentAssembler = DocumentAssembler().setInputCol("text").setOutputCol("document")

result = documentAssembler.transform(data)

result.select("document").show(truncate=False)
+----------------------------------------------------------------------------------------------+
|document                                                                                      |
+----------------------------------------------------------------------------------------------+
|[[document, 0, 51, Spark NLP is an open-source text processing library., [sentence -> 0], []]]|
+----------------------------------------------------------------------------------------------+

Continued

result.select("document").printSchema
root
 |-- document: array (nullable = True)
 |    |-- element: struct (containsNull = True)
 |    |    |-- annotatorType: string (nullable = True)
 |    |    |-- begin: integer (nullable = False)
 |    |    |-- end: integer (nullable = False)
 |    |    |-- result: string (nullable = True)
 |    |    |-- metadata: map (nullable = True)
 |    |    |    |-- key: string
 |    |    |    |-- value: string (valueContainsNull = True)
 |    |    |-- embeddings: array (nullable = True)
 |    |    |    |-- element: float (containsNull = False)

Using HuggingFace Transformers Models with SparkNLP

https://github.com/JohnSnowLabs/spark-nlp/discussions/5669

from transformers import TFDistilBertForSequenceClassification, DistilBertTokenizer
from sparknlp.annotator import *
from sparknlp.base import *

MODEL_NAME = 'distilbert-base-uncased-finetuned-sst-2-english'

tokenizer = DistilBertTokenizer.from_pretrained(MODEL_NAME)
tokenizer.save_pretrained('./{}_tokenizer/'.format(MODEL_NAME))

model = TFDistilBertForSequenceClassification.from_pretrained(MODEL_NAME)
model.save_pretrained("./{}".format(MODEL_NAME), saved_model=True)

asset_path = '{}/saved_model/1/assets'.format(MODEL_NAME)
!cp {MODEL_NAME}_tokenizer/vocab.txt {asset_path}

sequenceClassifier = DistilBertForSequenceClassification.loadSavedModel(
     '{}/saved_model/1'.format(MODEL_NAME),spark)\
     .setInputCols(["document",'token'])\
  .setOutputCol("class").setCaseSensitive(True).setMaxSentenceLength(128)

#### WHERE IS THIS SAVING TO???
sequenceClassifier.write().overwrite().save("./{}_spark_nlp".format(MODEL_NAME))

Readings

Required:

• Spark NLP Code Concepts

Encouraged:

• Spark NLP Annotators
• Intro to Spark NLP

Lab
